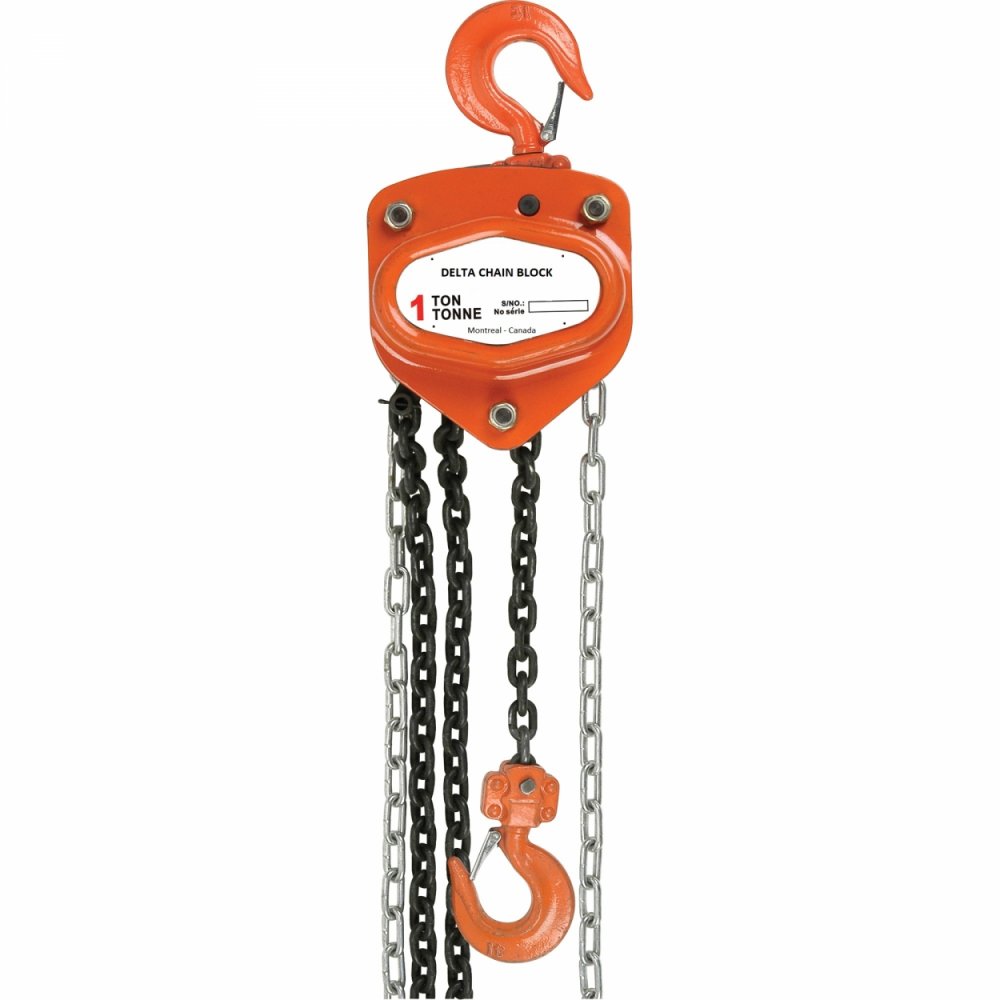

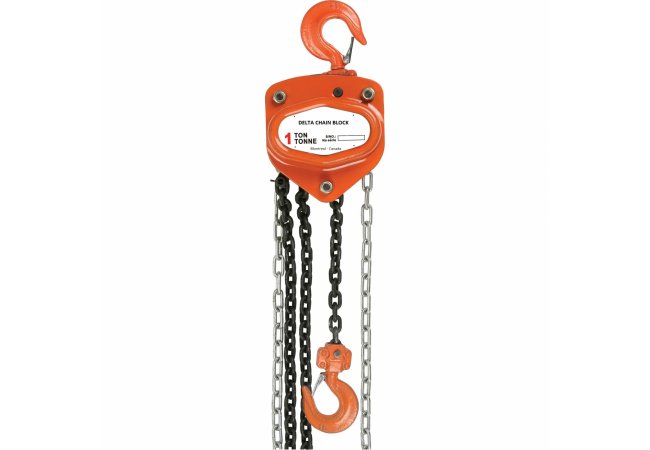

Delta manual chain hoist – HSZ Model

The Delta HSZ Chain Hoist is ideal for lifting material in an efficient and safe manner. Its lightweight, easy handling and durability makes it a favorite amongst its users. The chain hoist can be used in various domains such as construction, commercial and domestic applications.

• Heavy-Duty
• Meets ASME B30.16
• Load test
• Available with overload protection
• 2 year warranty

***Assembled in Montreal, Canada***
***Chain bags available upon request***

Formats

• Delta manual chain hoist – 1/2T to 20T – HSZ Model

Characteristics

• Robust light weight steel construction
• Both technical parameters and safety factor have reached or surpassed ISO specifications
• Each chain block is tested to 150% of the rated capacity and is packed with a safety test certificate
• Hand chain is zinc treated
• Equipped with an end anchor to avoid over lifting/lowering
• Electrostatic powder painted before assembly to avoid corrosion
• The bottom hook is thrust bearing equipped for easy positioning of the load in any direction
• Equipped with a double pawl braking system, with twin wet friction disc brakes
• Available in ½ to 20 ton capacities
